ConvertX (Samsung LED) Made in INDIA

ConvertX (Samsung LED) Made in INDIA

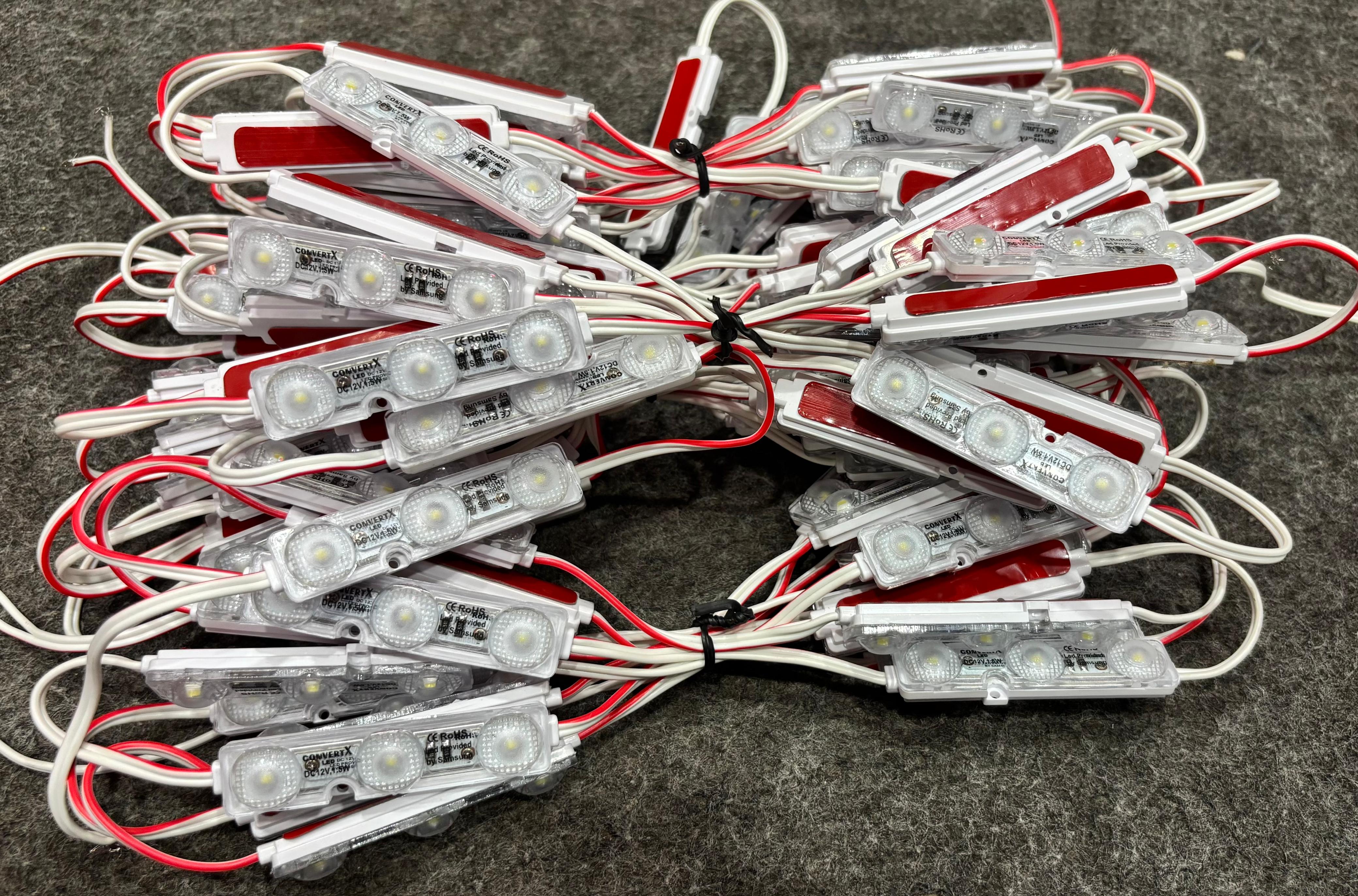

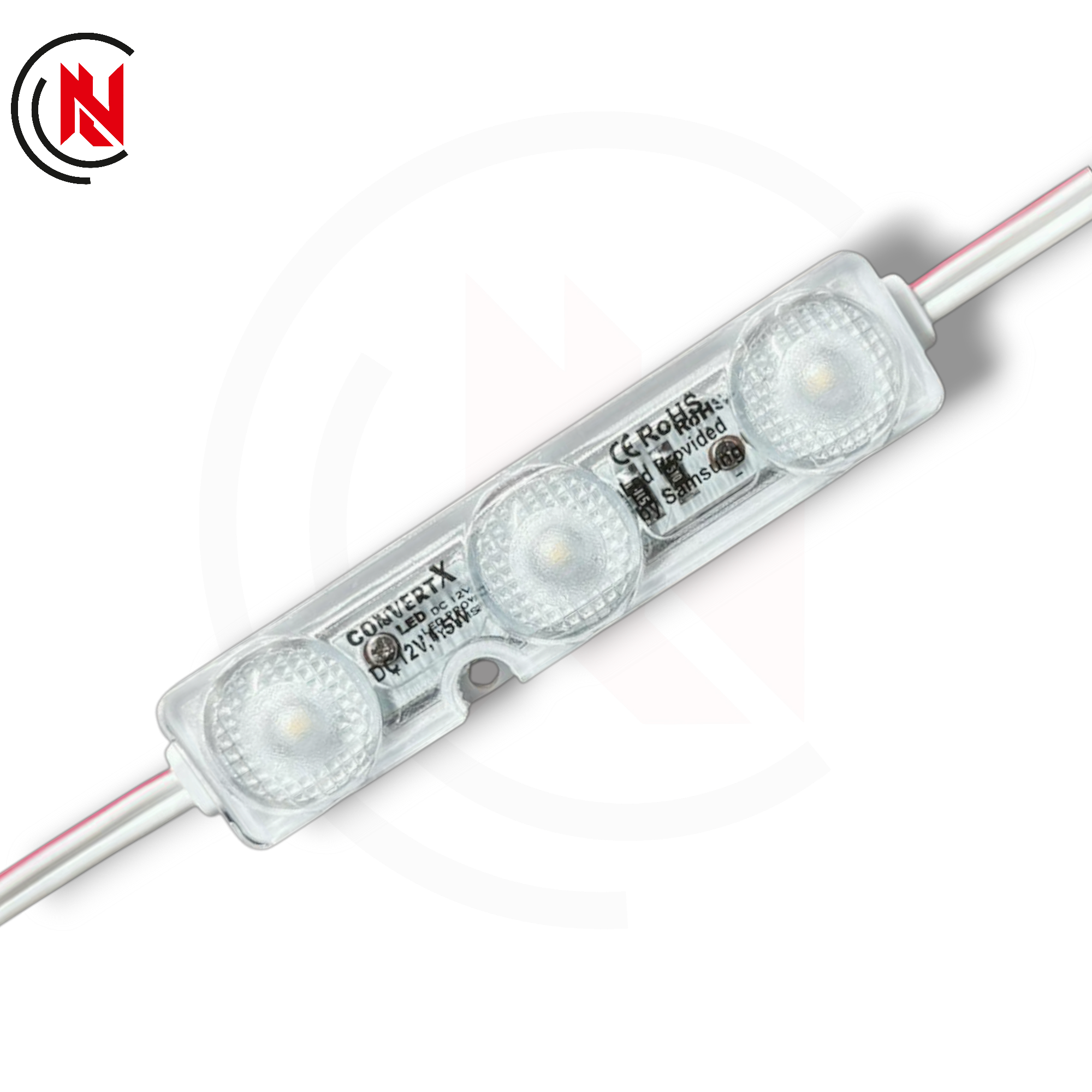

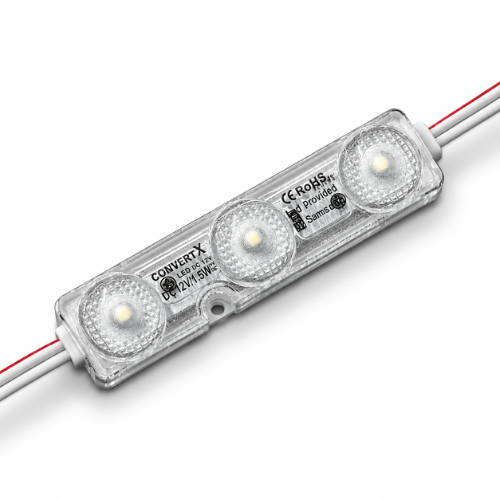

ConvertX ( Samsung LED )
Model No.	CX09
Operating Voltage	DC-12V
Power Consumption	1.5W
Color/CCT	WW/NW/PW/CW
Viewing Angle	175°
Luminous	160 lm
Operating Temp.	(-20°C - 60°C)
Operating Temp.	(-4°F - 140°F)
Warranty	5 Years
IP Rating	IP68
Dimension	72x15x11 mm
Wire Length	80mm (3.15 inch)
Wire Length	UL 18 AWG Pair Copper Wire

Category: LED Modules

Sub Category: ConvertX LED

View Brochure

Description

FEATURES

Three super bright genuine 2835 SAMSUNG certified LEDs in each module.
(LED : 2835 Type)
Quick installation through double sided VHB tape.
High efficiency led lighting products with less consumption of energy, more brightness
SMD LED mounted : Made in India
Max 20 modules in series
LED Driver: Constant Voltage Driving System
Fabricated with a Wide Angle 175 Spectrum
Lens Long life-span over 50,000 hours.
Reliable and qualified products meet global standards.

ConvertX ( Samsung LED )
Model No.	CX09
Operating Voltage	DC-12V
Power Consumption	1.5W
Color/CCT	WW/NW/PW/CW
Viewing Angle	175°
Luminous	160 lm
Operating Temp.	(-20°C - 60°C)
Operating Temp.	(-4°F - 140°F)
Warranty	5 Years
IP Rating	IP68
Dimension	72x15x11 mm
Wire Length	80mm (3.15 inch)
Wire Length	UL 18 AWG Pair Copper Wire
