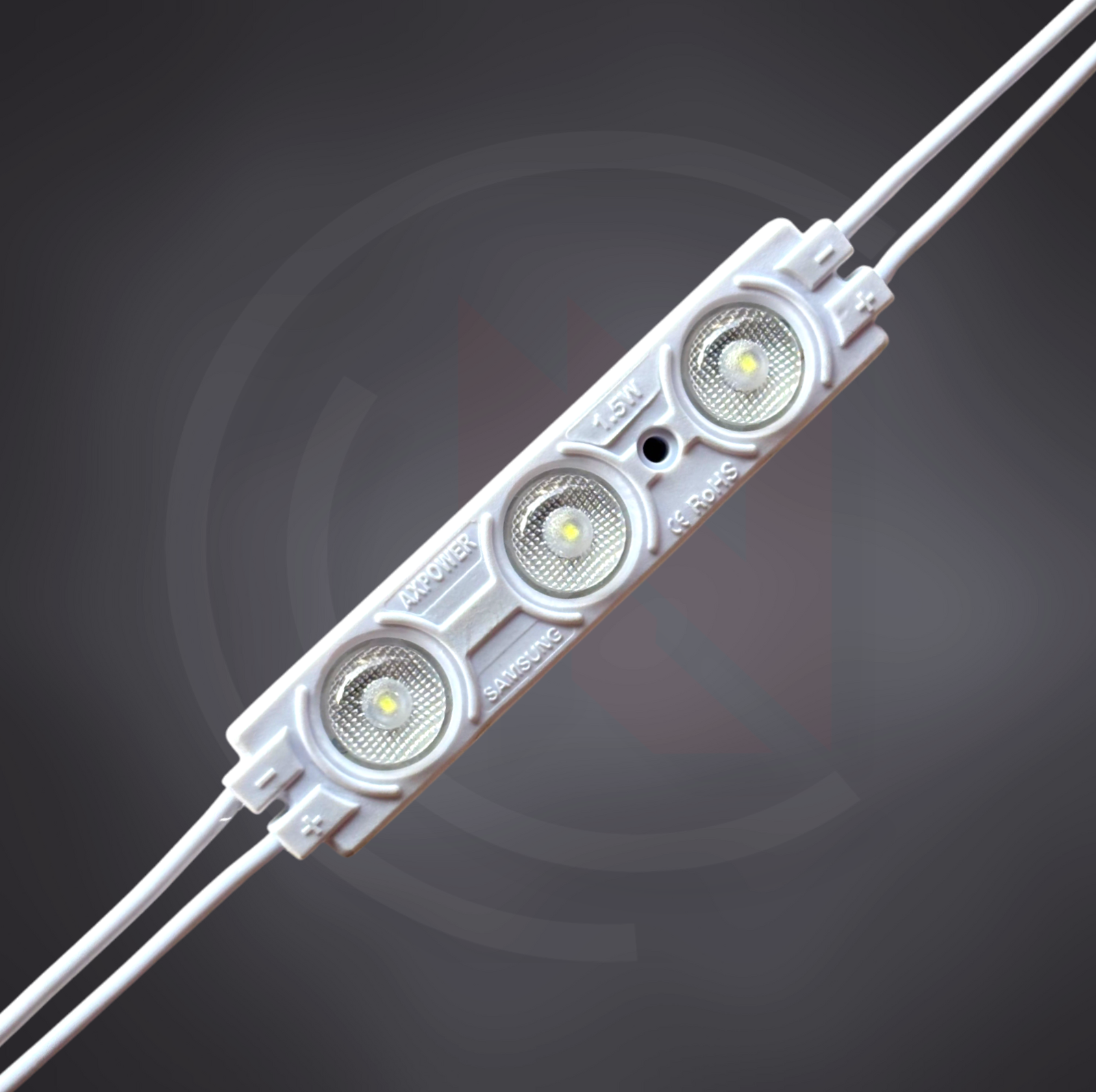

AX-Power Spectrum Led

AX-Power Spectrum Series
Model No. Spectrum 3 Led
Operating Voltage  DC-12V
Power Consumption 1.5W
Color/CCT CW/WW/RED
Viewing Angle 175°
Luminous 140 lm
Operating Temp.          (-20°C - 60°C)         (-4°F - 140°F)
Warranty 3 Years
IP Rating IP67
Dimension  70x15x6 mm
Wire Length         80mm (3.15 inch)        UL 18 AWG Pair

Category: LED Modules
Sub Category: AX-Power LED
View Brochure

Description

Constant Voltage Driven.
Up to 80% energy saving.
Long service life up to 50000 hrs.
High efficiency Chip, High Brightness and Reliablity.
Injection Molding Process With Crystal Lens.
Special Lens Design (175 ) Degree beaming angle with equal light.
Easy Installation with Double-Sided Quality tape for assured installation.
High luminous efficiency up to 145 lm.
IP 67 Waterproof.

AX-Power Spectrum Series
Model No. Spectrum 3 Led
Operating Voltage  DC-12V
Power Consumption 1.5W
Color/CCT CW/WW/RED
Viewing Angle 175°
Luminous 140 lm
Operating Temp.          (-20°C - 60°C)         (-4°F - 140°F)
Warranty 3 Years
IP Rating IP67
Dimension  70x15x6 mm
Wire Length         80mm (3.15 inch)        UL 18 AWG Pair
